STEP 1

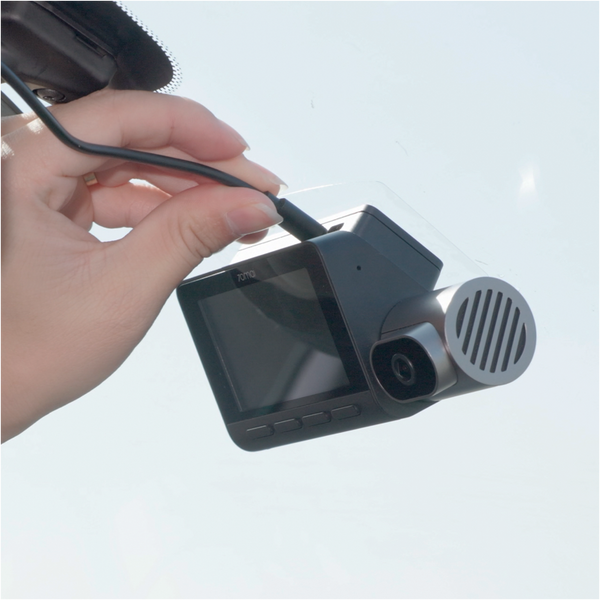

Turn off the engine and locate the fuse box (usually under the dashboard or hood). Connect the hardwire kit to your dash cam and route the cable along the headliner to the fuse box.
70mai Adjustable Hardwire Kit UP06 for Dash Cams with USB Type-C Port
$29.99
/
Shipping calculated at checkout.
**If you own a dash cam with a micro USB port, the UP02 is the hardwire kit you need.
-
Easy to install
-
Three-level adjustable low-voltage cut-off
-
Real-time display for battery voltage
-
Compatible with 12V–30V vehicle systems
-
Steady 5V/2.4A power supply
Shipping & Returns
Row content
1. Shipping Fee &Time
Free shipping for orders over $50.
Shipping to the United States:
Order placed before 5pm (PT) will be dispatched the same day excepts weekends or public holidays. Shipping and delivery is an additional 3-7 days.
Shipping to CA/AU/KR:
Order placed before 5pm (PT) will be dispatched the next day excepts weekends or public holidays. Shipping and delivery is an additional 7-14 days.
Please allow up to 2 working days for processing your order. When your package is shipped, we will send you an email including a link and a tracking number so you can see the progress of your package.
During a sale event, shipping may be delayed due to the high volume of orders. We will process order ASAP, however if there is a significant delay, we will contact you through email.
2. Tracking Number
Once your order ships, we will send you an email including tracking number individually. Please allow 48 hours for the tracking update. If your tracking has no update over 3 working days, please contact us at onlinehelp@70mai.com, we are here to help.
3. Delivery Address
A correct and complete delivery address is essential. Otherwise your parcel may experience a delay or a lost which we are not responsible for due to the incorrect information provided by you (our customers).
We are unable to change the address once your package is already shipped out. If a package is returned to us due to an incorrect or incomplete address, we will contact you for a correction, and the package will be re-shipped at an additional shipping fee.
4. Order Cancellation
We accept order cancellation before the product is shipped. If the order is canceled you will get full refund. We cannot cancel the order if the product is already shipped out.
5. Order Modification
We don't offer order emendation after the order has been placed. If you want to change the item(s) of your order, please contact us in time to cancel the original order and replace it with a new one.
Why Use a Hardwire Kit?
Stay Protected on the Road
During driving, the hardwire kit powers the dash cam via the fuse box (VCC, ACC, GND), replacing the cigarette lighter for a cleaner setup and ensuring continuous coverage from the moment you hit the road.
24/7 Protection Even When Parked
By tapping into your vehicle's fuse box, the hardwire kit keeps your dash cam running while parked, capturing every crucial moment, and automatically powers down before your car battery gets too low.
A Smarter Upgrade
Building on the original Hardwire Kit UP03, the upgraded Adjustable Hardwire Kit UP06 features easier installation, smarter battery protection, and real-time voltage monitoring.
Two Sets of Fuse taps
Easily clip onto your car's VCC & ACC slots with matching 5A fuses—making fuse box installation simple and hassle-free.
Three-level Adjustable Low-voltage Cut-off
Protect your car battery with customizable power thresholds that powers off the output after 3 minutes below the set voltage.
Real-time Voltage Display
A bright, three-digit display shows your battery's real-time voltage (±0.1 V), helping you spot unusual voltage drops that may signal potential problems.
Set-it-and-forget-it Installation
Two sets of four fuse taps (standard, MINI, low profile, MICRO2) are included, which clip right onto your car's VCC & ACC slots with matching 5A fuses. Set it once and never worry about tricky wiring again.
STEP 2

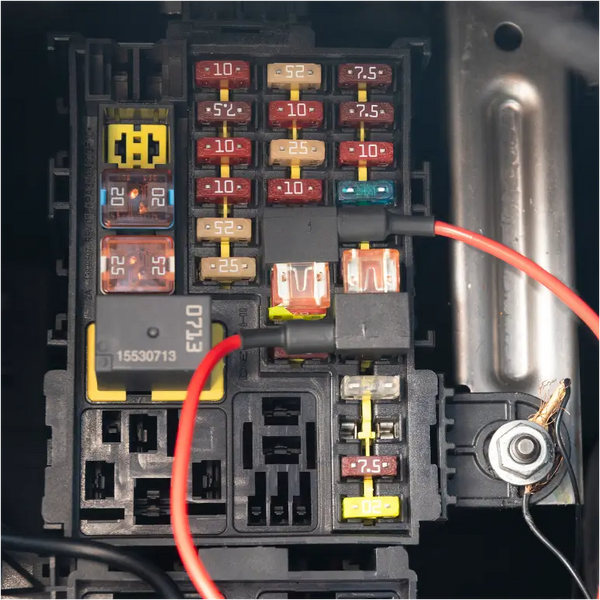

Connect the wires to ACC, constant power, and ground using the included 5A fuses and fuse taps that match your vehicle.
STEP 3

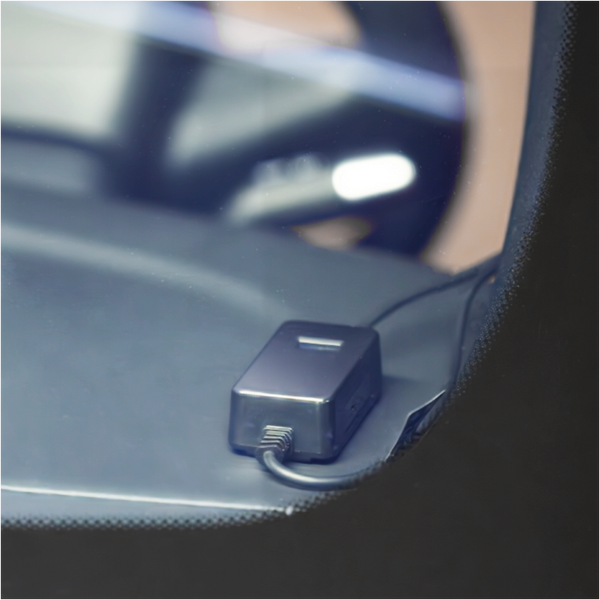

Mount the hardwire kit module using the included 3M adhesive pad.
Watch Full Tutorial
No fuss, no muss, just simple and fast installation.
Customizable Battery Protection
Depending on your car's condition and the current climate, you can adjust the protection level with thebuilt-in three-level switch(±0.2V accuracy). This allows you to fine-tune the voltage threshold to balance parking surveillance time with battery protection. If the voltage stays below your chosen level for more than 3 minutes, the kit automatically powers off the dash cam to prevent battery drain.
Now includes an optional 3-level adjustable low-voltage cut-off:
11.8V / 12.1V / 12.4V for 12V vehicles
23.6V / 24.0V / 24.4V for 24V vehicles
Instant Battery Voltage Monitoring
A bright, three-digit display shows your battery's real-time voltage (±0.1 V*), providing you with an immediate read on its current state. It helps you quickly identify unusual voltage drops that may signal potential problems, giving you peace of mind before any issues arise.
*Due to display tolerance, the shown voltage may be slightly lower than the actual value, but the device will continue operating. This is normal and not a malfunction.
Universal Compatibility
With12V–30V wide voltage input, it works flawlessly with both 12V cars and 24V trucks.
Specs
Input Voltage
12-30V
Output Voltage
Type-C 5V/2.4A
Low Voltage Protection
Three-level adjustable (±0.2V accuracy)
11.8V/23.6V
12.1V/24V
12.4V/24.4V
Working Temperature
-20℃ to 70℃ (-4°F to 158°F)
Input Cable
1.0m (3.28ft), 22AWG
ACC (Yellow, with bullet terminal)
GND (Black, with fork terminal)
VCC+ (Red, with bullet terminal)
Output Cable
3.0m (9.84ft)
Black and Red: 22AWG
Yellow: 26AWG
Type-C connector
Output Short Circuit Protection
Yes
Output Overload Protection
Yes
Input Overvoltage Protection
Yes
